• Wheels: 19.5" Argent Painted Steel -inc: manual locking hubs
• Tires: 225/70Rx19.5G BSW AS
• Black Front Bumper w/Black Rub Strip/Fascia Accent and 2 Tow Hooks
• Black Fender Flares
• Black Side Windows Trim and Black Front Windshield Trim
• Black Door Handles
• Black Manual Side Mirrors w/Manual Folding
• Manual Extendable Trailer Style Mirrors
• Fixed Rear Window
• Light Tinted Glass
• Variable Intermittent Wipers
• Aluminum Panels
• Front Splash Guards
• Black Grille
• Front License Plate Bracket
• Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off
• Cab Clearance Lights

• Radio: AM/FM Stereo -inc: 4 speakers
• Radio w/Clock
• 4 Speakers
• Fixed Antenna
• 1 LCD Monitor In The Front

• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Manual Tilt/Telescoping Steering Column
• Front Cupholder
• Manual Air Conditioning
• Illuminated Locking Glove Box
• Interior Trim -inc: Chrome Interior Accents
• Full Cloth Headliner
• Urethane Gear Shifter Material
• HD Vinyl 40/20/40 Split Bench Seat -inc: center armrest, cupholder, storage and driver's side manual lumbar
• Day-Night Rearview Mirror
• Passenger Visor Vanity Mirror
• 2 12V DC Power Outlets
• Front Map Lights
• Fade-To-Off Interior Lighting
• Full Vinyl/Rubber Floor Covering
• Instrument Panel Covered Bin and Dashboard Storage
• Manual 1st Row Windows
• Driver Information Center
• Trip Computer
• Outside Temp Gauge
• Analog Appearance
• Manual Adjustable Front Head Restraints
• Front Center Armrest w/Storage
• Air Filtration

• AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• Driveline Traction Control
• Side Impact Beams
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
• Safety Canopy System Curtain 1st Row Airbags
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters

ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20

• Diesel Exhaust Fluid (DEF) tank
• Intelligent Oil-Life Monitor
• manual push-button engine-exhaust braking and split-shaft calibration compatibility
• 220 Amp Extra Heavy Duty Alternator
• 4.10 Axle Ratio
• Dual 78-AH 750 CCA Batteries

• Order Code 660A
• GVWR: 18,000 lbs Payload Package
• GVWR: 19,500 lb Payload Plus Upgrade Package
• Wheels: 19.5" Argent Painted Steel
• HD Vinyl 40/20/40 Split Bench Seat
• XL Value Package
• Power Equipment Group
• Snow Plow Prep Package
• High Capacity Trailer Tow Package
• Engine Block Heater
• 6-Ton Hydraulic Jack
• Dual Extra Heavy-Duty Alternators (Total 377-Amps)
• Trailer Brake Controller
• Platform Running Boards
• Center High-Mounted Stop Lamp (CHMSL)
• 110V/400W Outlet
• AM/FM Stereo
• SYNC Communications & Entertainment System
• XL Decor Group
• Chrome Front Bumper
• 4 Speakers
• Front Center Armrest w/Storage
• Dual rear wheels
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Rear anti-roll bar
• Power steering
• Passenger vanity mirror
• Passenger cancellable airbag
• Overhead airbag
• Outside temperature display
• Fully automatic headlights
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Delay-off headlights
• Brake assist
• AM/FM radio
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Brakes
• Brake ABS System (Second Line): 4-Wheel
• Brake ABS System: 4-Wheel
• Brake Type: 4-Wheel Disc
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.4
• Rear Brake Rotor Diam x Thickness (in): 15.7
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Exterior Dimensions
• Cab to Axle (in): 84
• Cab to End of Frame (in): 131.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Height, Overall (in): 81.1
• Length, Overall (in): 254.8
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Wheelbase (in): 169
• Width, Max w/o mirrors (in): 80
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Interior Dimensions
• Front Head Room (in): 40.8
• Front Hip Room (in): 62.5
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Passenger Capacity: 2
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 48.5
• Summary
• Body Code: H
• Body Style: SD Regular Cab

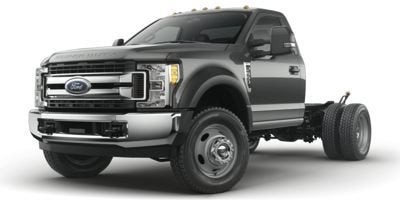

• Vehicle Name: Ford Super Duty F-550 DRW
• Suspension
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 13660
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Tires
• Front Tire Capacity (lbs): 7500
• Front Tire Order Code: TFB
• Front Tire Size: LT225/70SR19.5
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: TFB
• Rear Tire Size: LT225/70SR19.5
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5025
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 20100
• Maximum Trailering Capacity (lbs): 18500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1850
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18500
• Weight Information
• Base Curb Weight (lbs): 7018
• Curb Weight - Front (lbs): 4015
• Curb Weight - Rear (lbs): 3001
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 13660
• Gross Combined Wt Rating (lbs): 28000
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 X 6
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 X 6
